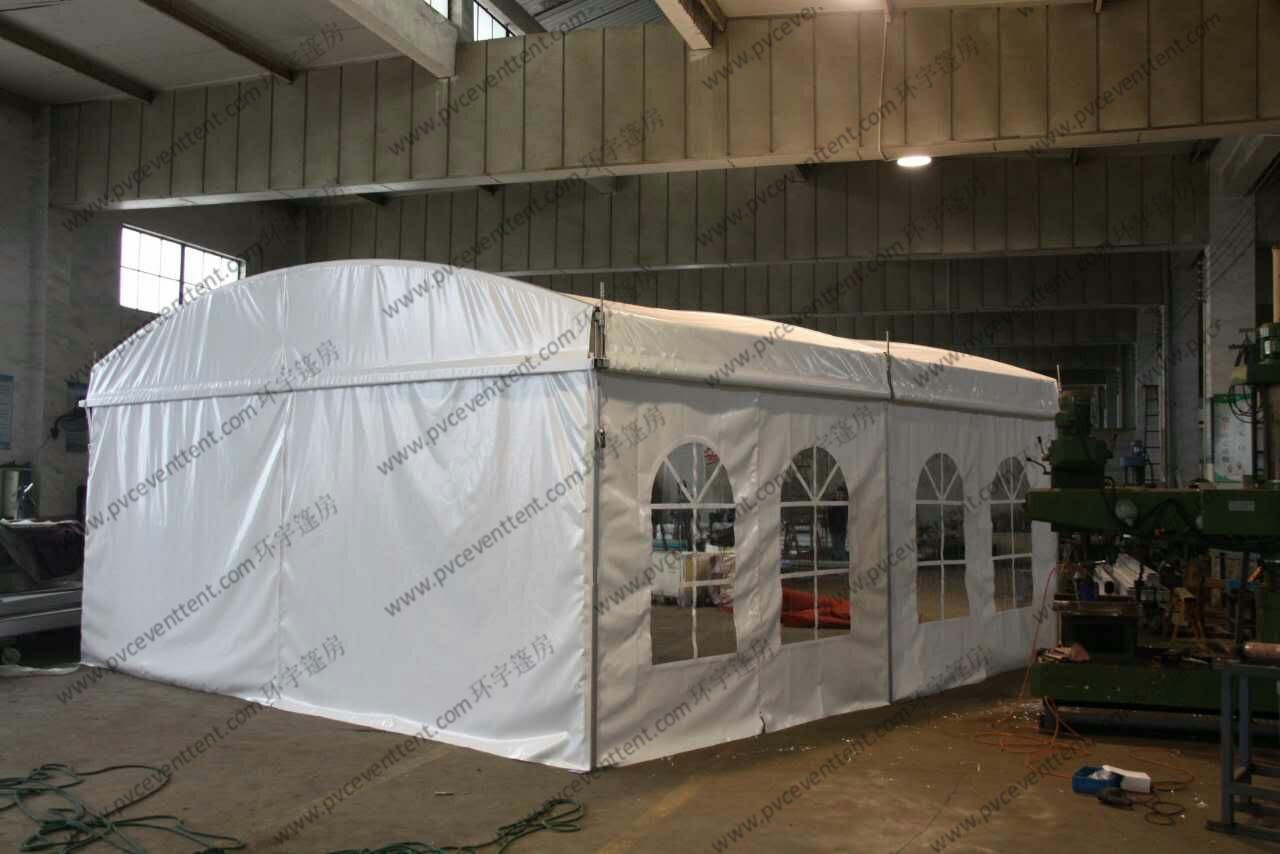

Small Size of Archy Tents Aluminum Frame for Exhibitions or Trade Shows
Description
It's a very economical and elegant archy tent, which often used for outdoor wedding, party and many other events. The clear span of this type tent is from 3m to 50m and the length is no limited which can fit different requirements. With no pole inside, it’s 100% used for the events. Easy to be assembled and dismantled. It's the most suitable tent type for your tent rental business and event business.
UNIVERSAL TENT is an experienced tent supplier with creative and delicate solution in tent field. We focus on global PVC tents market and requirements and supply satisfactory and customized solution to our customers.
Specifications of Our Double Decker Tents
Frame struss: hard pressed extruded aluminium 6061/T6(15HW) .
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: 70~100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| ABT | 15m/49.2' | 5m/16.4' | 3.88m | 5.73m | 204x120x4mm(4-channel) |
| ABT | 20m/65.6' | 5m/16.4' | 3.88m | 6.53m | 204x120x4mm(4-channel) |
| ABT | 25m/82' | 5m/16.4' | 3.88m | 7.33m | 204x120x4mm(4-channel) |
| AEBT | 15m/49.2' | 5m/16.4' | 3.92m | 5.55m | 204x120x4mm(4-channel) |
| AEBT | 20m/65.6' | 5m/16.4' | 3.92m | 6.33m | 256x121x5mm(4-channel) |
| AEBT | 25m/82' | 5m/16.4' | 3.92m | 7.15m | 256x121x5mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m...Customized size or shape is available. |
Accessories
Tent Covers: different colors for your choose, transparent cover
Side Windows: arch or square clear PVC windows, mesh window, glass window
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
Side Walls: soft PVC fabric wall, glass solid wall, ABS hard wall, sandwich panel wall, steel plate wall
Interior decoration: roof lining, side curtains, different colors and designs are available
Fixing Methods: steel pegs, weight plate, expandable bolts
Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
Optional Items: table, chair, lighting, AC, carpet, installation tools, booth, mobile toilet, etc.
Professional Packing for Tents Transportation
1. Aluminum frame packed in membrane film
2. Hardware packed in solid carton box
3. PVC covers are packed in professional PVC carry bag
4. Customized package (will be extra charged)
Our service
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff
5. Professional factory : We are manufacturer, specializing in producing all kinds of tents for more than 10 years, competitive with good quality.
6. As an honest seller, we always use superior material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature
